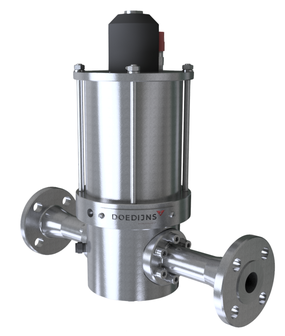

Pneumatic Cell Sampler 1 cc, 300# SS316 Std. seals

SPECIFICATIONS:
Wetted parts: SS316
Pressure rating: 300#
Sample grab volume: 1 cc

*** The flange connection set is NOT INCLUDED ***
Purchase the flange connection set separately, select from the connection list pulldown menu.

The automatic cell sampler is used to accurately determine the quality of the (crude) oil samples. The point is that a crude oil sample is physically removed from the pipeline and collected in a sample receiver that fully reflects the batch in question, the cell sampler is a type positive displacement pump that takes the "grab" sample for each stroke.

Cell sampler systems allow the quality (e.g. water and sediment content) of a (mostly crude oil) pipeline transfer to be established. This together with the metered quantity is used to calculate the product volume for commercial and fiscal transactions. The cell sampler is used for crude oils applications, which commonly contain water and sediment.
The automatic cell sampler is the basic and most important integral part of the automatic inline cell sampling systems, it is a heavy duty reliable and accurate sample extraction device, which is designed to be mounted directly on the main pipeline and takes continiously grab crude oil samples of 1 ml volume, the sampler is actuated by a solenoid valve which is driven by a controller, generating either a flow proportional or time based signal, depending on the process. The automatic cell sampler is an integral part of the inline probe or fast-loop sampling systems.
Sample receivers, samples collected with the automatic fast-loop or in-line samplers are transferred to a sample receiver for storage.

In contrast to manual sampling, where one sample is taken at a specific time, you see with automatic sampling that up to 10,000 samples are taken per batch with a volume of 1 ml.
